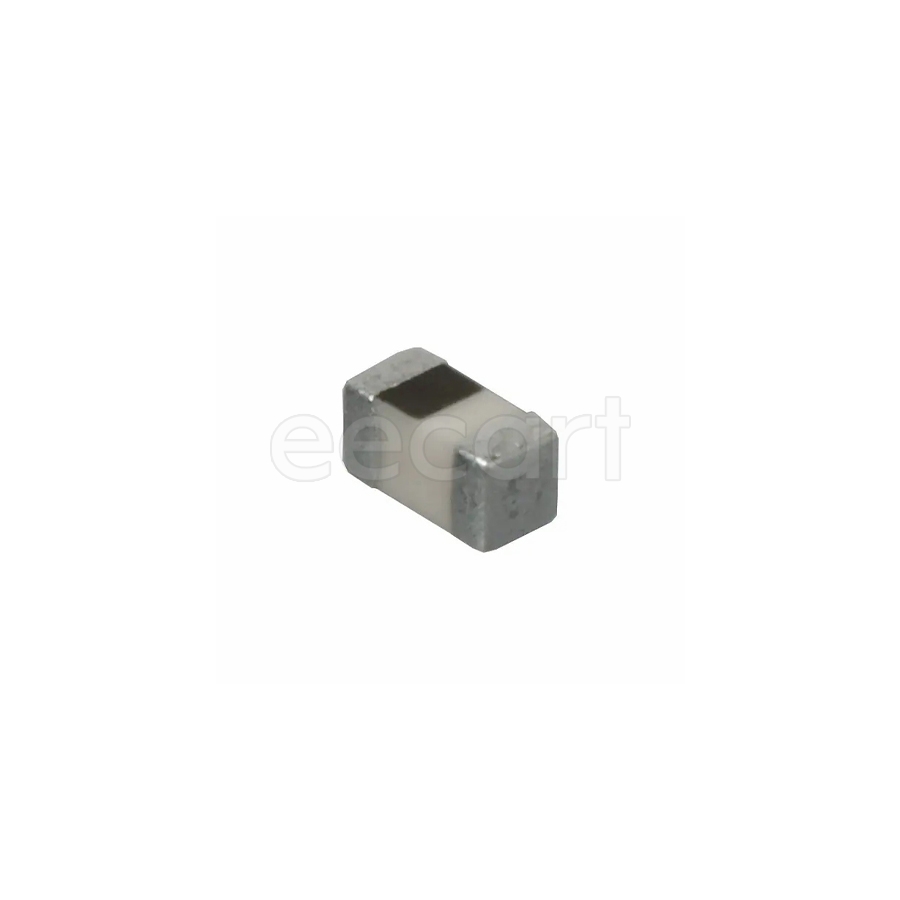

L-05B39NJV6T
Manufacturer:
Johanson Technology
Mfr.Part #:
L-05B39NJV6T
Datasheet:
Description:
Fixed Inductors 0201(0603 Metric) SMD/SMT 39 nH 5 % 200 mA 2.5 Ω
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Height - Seated (Max) | 0.33 mm |
| Length | 609.6 µm |
| Width | 300 µm |
| Termination | SMD/SMT |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Number of Pins | 2 |
| Composition(Kit Type) | Ceramic |
| Height | 300 µm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 1.4 GHz |
| Q Factor | 4 |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 2.5 Ω |
| Test Frequency | 100 MHz |
| Shielding | Unshielded |
| Inductance | 39 nH |
| Core Material | Ceramic |
| inductance tolerance | 5 % |
| Max DC Current | 200 mA |
| Schedule B | 8504500000 |
| Type | Multilayer |
Stock: 2112
Distributors
pcbx
pcbxUnit Price$0.06882
Ext.Price$0.06882
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06882 | $0.06882 |
| 10 | $0.03941 | $0.39410 |
| 50 | $0.03478 | $1.73900 |
| 100 | $0.03069 | $3.06900 |
| 500 | $0.02700 | $13.50000 |
| 1000 | $0.02376 | $23.76000 |
| 3000 | $0.02040 | $61.20000 |
| 5000 | $0.01752 | $87.60000 |
| 10000 | $0.01752 | $175.20000 |
